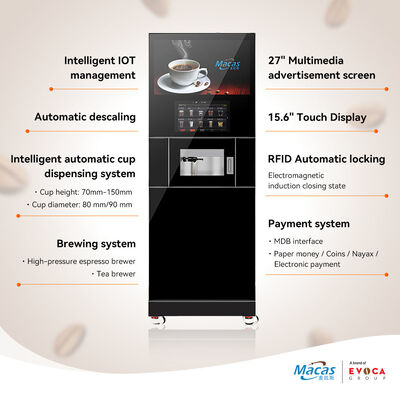

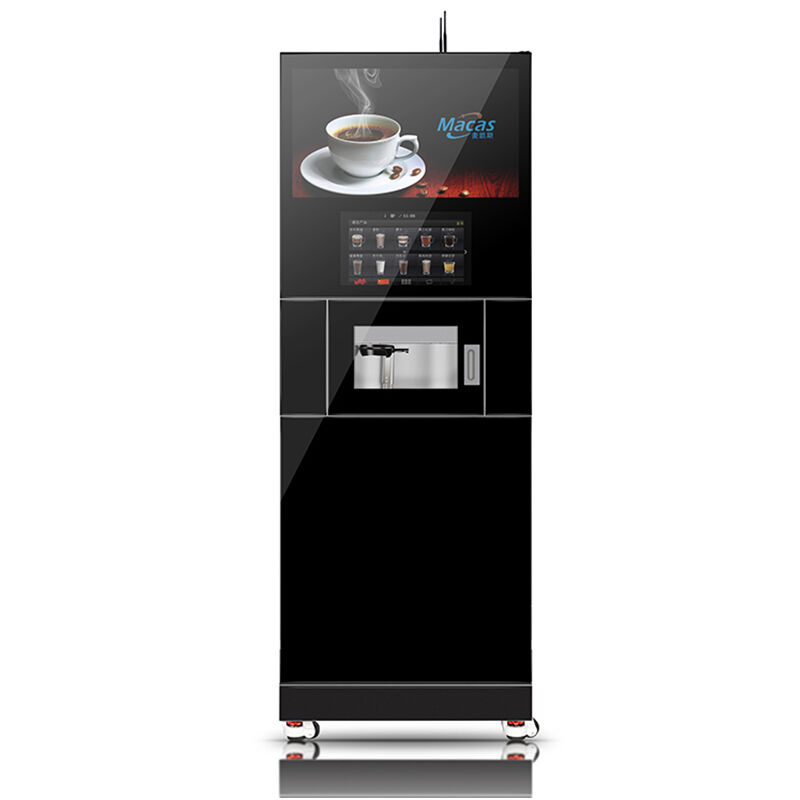

This floor-mounted coffee vending machine features a 27-inch advertising screen, 15.6-inch operating touch screen, and IoT connectivity support. Designed for commercial use with coin-operated and digital payment options.

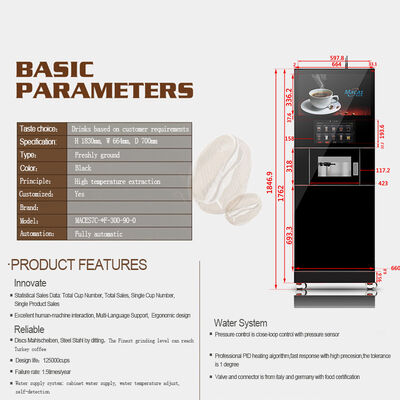

Technical Specifications
Voltage:AC 90-230V / 50-60Hz
Max Power:2200W
Fuse:15A (England 13A)
Water Inlet Pressure:0.5-7 bar
Working Environment:5-35°C, Max humidity 90%
Gross Weight:150 kg
Design Life Span:125,000 cup cycles
Beverage Making Speed:20s (120ml instant), 35s (30ml espresso)
Hot Water Supply:20L/hour
Waste Water Bin:18L
Residue Bin:18L
Water Tank:Two tanks, 18.9L each
Instant Canister Volume:6 sets, 3.8L each (adjustable)
Coffee Bean Canister:12L
Stick Dispenser:400 cups
Machine Size:1830×664×700mm
Package Size:2030×864×900mm
Cup Size:80mm diameter (200-300ml capacity)
Max Cup Height:120mm
Min Cup Height:70mm
Max Cup Pot Height:200mm
Beverage Options
30 beverage varieties available including: Espresso, Cappuccino, Fresh Vanilla, Mocha, Hot Milk, Chocolate, Starbucks-style, Decaffeinated Coffee, Hot & Cold Beverages, Barley, Lemon Tea, Macchiato, Con Panna, and more. Customizable selection based on market demand.
Machine Applications

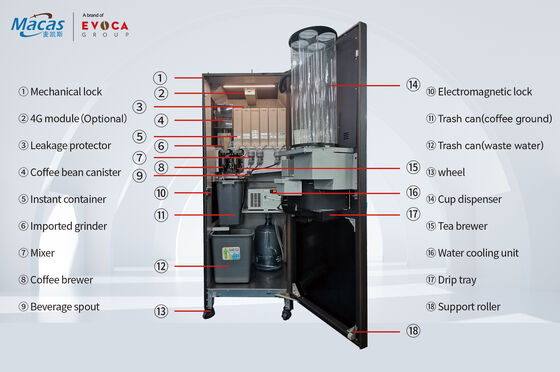

Core Components
Company Profile
Packaging & Delivery
Application Scenarios
Frequently Asked Questions
Is the machine certified?
The machines are uniformly certified in accordance with CE requirements.
What languages does the machine support?
The current machine supports 10 languages including Chinese, English, Arabic, French, German, and Russian.
What are the water supply methods for the machine?
The machine comes standard with two water supply methods: bottled water supply and tap water supply.
What are the machine payment methods?
The machine comes standard with WeChat payment, Alipay payment, and optional equipment for overseas markets: banknote dispenser, coin dispenser, credit card payment, etc.
Does the machine meet food grade requirements?
All parts inside the machine that are in contact with water and food (such as boilers, water pumps, canisters, brewers, etc.) are provided with NSF certification.
What is the machine communication method?
The machine itself supports WIFI function and also has a reserved network cable interface, so it can communicate with our management platform at any time.
Why are many domestic commercial coffee machines much cheaper than our machines?
The core components come from Italy to ensure the stability of the machine. For example, the grinder uses Nectar brand grinder, and the water pump uses a magnetic pump instead of the piston pump used by many manufacturers to ensure the best extraction effect. We ensure that the average daily output of the machine can reach more than 200 cups. We are a true commercial coffee machine.
How much power does the machine consume?
The power consumption of the machine is 2000W. Most of the machines are in standby mode, and the power consumption per hour is 20W. 1 kilowatt hour of electricity can make 30 cups of coffee. The boiler is an instant heating boiler, which only consumes more power during the heating process.
What is the packaging method for machine transportation?
The machine is transported in wooden boxes with solid structure.
Can the 15.6-inch touch screen play ads?
The machine can play video advertisements when it is not working, and we can upload advertisements through the cloud platform.
Can the machine clean itself?
The pipes of the machine can be automatically cleaned at scheduled intervals through software settings. Other modules, such as brewers, mixers, canisters etc., need to be cleaned manually on a regular basis. This is mainly evaluated based on the average daily use frequency of the machine.
Does the machine have an MDB interface?
For overseas markets, it is equipped with MDB interface as standard to facilitate subsequent customers to connect payment equipment.
